Outline¶
- State of the art : the two language problem
- What is Julia
- Why Julia is fast
- Julia Ecosystem & interop
Matlab¶
Pros :
- Polished product with support
- Simulink
- High level syntax
Cons :
- Closed : not everyone has access to it, impossible to put a demonstrator online.
- Slow loops (better since 2015) : not everything is pretty once vectorized
- Not fast per se (Fortran bindings), memory management is difficult
- Not a generalist language (cumbersome to put a demo on the web e.g.)
- €€ each year for a lab
Python¶
Pros :
- Free and open-source, generalist, widly used outside scientific community
- Lot of scientific communities are embracing it
- Lots of efforts to make it fast (numba, ...)
Cons :
- Scientific computing is not native :
- all fallback to C/Fortran black-boxes -> limit flexibility
- Object Oriented paradigm can be cumbersome for scientific code
Science and the two languages problem¶
Scientists need to easily explore new ideas :
- Need for mathematical abstractions
Need for customizations (avoid black boxes, try variations)
But also need for performance (intrinsic goal or to allow re-use)
What is done now (when you need to go further than using existing packages, for e.g. data analysis)
1) Prototyping in R/Python/Matlab
2) Rewriting whole or parts (if money/man power) to a performant low-level language as C/Fortran
Yet another language¶
Here comes Julia :¶
- innovative open-source generalist programming language with scientific computing at its core
- easy as Matlab, fast as Fortran, flexible as Python, deep as LISP
- leverages (for now...) major C/Fortran science packages, e.g. LAPACK, MPI, FFTW...
- 5th language to run at 1 petaflops (Celeste project), after assembly, Fortran, C, C++
- State of the art packages in Optimization (JUMP), Differential Equations (DifEq), ... Well positioned for ML (Flux, Knet, autodiff...)
- solves the "two-languages problem"
Background¶
- origins at MIT, UCSB applied math & computer science, 2010
- founders Viral Shah, Jeff Bezanson, Stefan Karpinsky (now at Julia Computing LLC), Alan Edelman (MIT)
- ~10-person core language team, ~870 contributors, ~2500 registered packages
- support from Intel, Microsoft, Wall St., Moore Foundation, NumFocus
- julia-0.1 released in 2012, julia-1.0 in August 2018, now julia-1.2
Its goal : Solve the two-languages problem by having a dynamic, high level language with good mathematical expressivity able to be as fast as C/Fortran.
Disclaimer¶
- I am not a Julia expert : I've been following the language for ~ two years and I am currently porting python research codes to Julia.
- Julia (like Python...) is not a drop-in replacement for Matlab, it is an alternative.
- Don't fix that ain't broken :
- if Matlab/R/Python/C is good for you, no need to change
- but if you are sometimes faced with some limitations of these languages, give Julia a try
In [1]:
A = randn(4,4) # 4 x 4 matrix of normally distributed random numbers
Out[1]:
In [2]:
A[:,1] # familiar colon syntax --extract first column of A
Out[2]:
Linear Algebra¶
In [3]:
using LinearAlgebra
b = randn(4)
x = A\b # solve Ax=b for x using backslash operator
norm(A*x-b)
Out[3]:
In [4]:
U, σ, V = svd(A); # singular value decomposition --note unicode variable name σ
In [5]:
Σ = diagm(0 => σ)
norm(A - U*Σ*V') # compute error of SVD factorization A = U Σ V'
Out[5]:
Fast as Fortran¶
In [6]:
function loop()
a=0
for i in 1:1_000_000
a+=1;
end
end
@time loop() # compile time
@time loop() # now fast
Compare with Matlab (R2018)¶
I know this is not Matlab-friendly, that's the point !
function [] = loop()
a=0;
for i=1:1000000
a=i+1;
end
end
f = @() loop();
timeit(f) => 0.0018s
1000x slower !

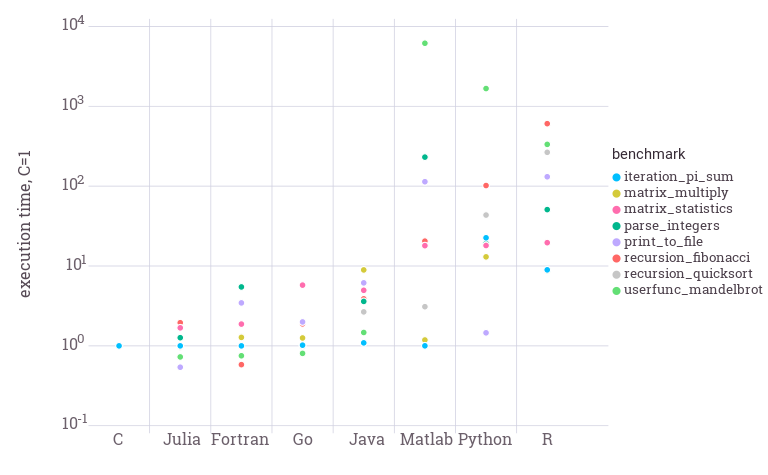

Benchmarks on common code pattterns¶
Takeaway: Julia timings are clustered around C timing, Matlab/Python/R orders of magnitude slower.

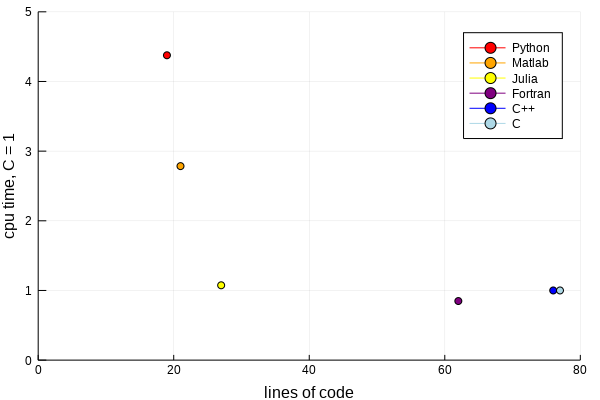

KS-CNAB2 benchmark: CPU time versus lines of code¶
Takeaway: The Julia PDE code is almost as compact as Matlab/Python, almost as fast as C/Fortran.
Julia: easy, dynamic, and fast. How?¶
- Just-in-time compilation (JIT)
- user-level code is compiled to machine code on-the-fly
- Meticulous type system
- designed to maximize impact of JIT
- type inference: compiler determines types of variables
- Multiple dispatch
- functions are compiled for each set of argument types
- function dispatch determined at compile time when possible, run time when not
**Just-in-time ahead-of-time compilation
Functions are compiled to machine code when first run. Subsequent runs are as fast as compiled C, C++, Fortran. Not a tracing JIT (like pypy)
Caveats¶
- It's a marathon not a sprint : Julia can be slow at first
- It's an open-source language with lots of good willing contributors, it's not a product (see JuliaPro...)
- If you directly translate from Matlab to Julia you will not always see an improvement, you have exploit Julia strengths (loops to avoid allocations, type stability, ...)
A julia type¶
Like a C struct, or a Python object... but without methods
struct Spaceship
speed::Float64
Position::Array{Float64,2}
end
Multiple dispatch¶
collide(a::Asteroid, s::Spaceship) # a first method of the function collide
collide(s1::Spaceship, s2::Spaceship) # another method of the function collide
The power of Multiple dispatch¶
Ref https://medium.com/@Jernfrost/defining-custom-units-in-julia-and-python-513c34a4c971
See also (very interesting!) : https://www.youtube.com/watch?v=kc9HwsxE1OY
In [7]:
abstract type Temperature end
struct Celsius <: Temperature
value
end
struct Kelvin <: Temperature
value::Float64
end
struct Fahrenheit <: Temperature
value::Float64
end
import Base: promote_rule, convert
promote_rule(::Type{Kelvin}, ::Type{Celsius}) = Kelvin
promote_rule(::Type{Fahrenheit}, ::Type{Celsius}) = Celsius
promote_rule(::Type{Fahrenheit}, ::Type{Kelvin}) = Kelvin
convert(::Type{Kelvin}, t::Celsius) = Kelvin(t.value + 273.15)
convert(::Type{Kelvin}, t::Fahrenheit) = Kelvin(Celsius(t))
convert(::Type{Celsius}, t::Kelvin) = Celsius(t.value - 273.15)
convert(::Type{Celsius}, t::Fahrenheit) = Celsius((t.value - 32)*5/9)
convert(::Type{Fahrenheit}, t::Celsius) = Fahrenheit(t.value*9/5 + 32)
convert(::Type{Fahrenheit}, t::Kelvin) = Fahrenheit(Celsius(t))
import Base: +,-,*
+(x::T, y::T) where {T <: Temperature} = T(x.value + y.value)
-(x::T, y::T) where {T <: Temperature} = T(x.value - y.value)
+(x::Temperature, y::Temperature) = +(promote(x,y)...)
-(x::Temperature, y::Temperature) = -(promote(x,y)...)
*(x::Number, y::T) where {T <: Temperature} = T(x * y.value)
const °C = Celsius(1); const °F = Fahrenheit(1); const K = Kelvin(1);
In [8]:
1K+1°C
Out[8]:
Introspection¶
$$f(x) = 4\, x\, (1-x)$$In [9]:
f(x) = 4x*(1-x) # define logistic map
@time f(0.3); # first run is slow
@time f(0.4); # second run is a thousand times faster
Observe the compilation of $f(x)$ by stages¶
user Julia -> generic Julia expression -> typed Julia expression -> intermediate compiler language -> machine code
In [11]:
@code_lowered f(0.3) # show f(x) as generic Julia expression
Out[11]:
In [12]:
@code_typed f(0.3) # show f(x) as Julia expr with inferred types, based on the arg types
Out[12]:
In [13]:
@code_llvm f(0.3) # show f(x) in intermediate compiler language (LLVM)
Type inference and dispatch¶
We can see that if we call f on an Integer we get a code specialised for integer (i64)
In [14]:
@code_native f(0.3) # show f(x) in IA-64 assembly language
In [15]:
@code_native f(3) # show f(x) in IA-64 assembly language
Genericity¶
In [16]:
using LinearAlgebra
# First we write a generic function (that takes an array A and a list of vectors
# and sums the inner products of A and each vector)
function inner_sum(A,vs)
t = zero(eltype(A))
for v in vs
t += inner(v,A,v)
end
return t
end
# we define the inner product used in our inner_sum function
inner(v,A,w) = dot(v,A*w)
## Now we want a new type, the famous One Hot Vector
import Base: *
struct OneHotVector <: AbstractVector{Bool}
idx::UInt32
len::UInt32
end
Base.size(xs::OneHotVector) = (Int64(xs.len),)
Base.getindex(xs::OneHotVector, i::Integer) = i == xs.idx
Base.getindex(xs::OneHotVector, ::Colon) = OneHotVector(xs.idx, xs.len)
In [17]:
# It works (generic) ! but it's slow
v = [OneHotVector(i,1000) for i in rand(1:1000,100)]
A=rand(1000,1000)
inner_sum(A,v)
@time inner_sum(A,v)
# And now specify to get speed !
A::AbstractMatrix * b::OneHotVector = A[:, b.idx]
inner(v::OneHotVector,A,w::OneHotVector) = A[v.idx,w.idx] # How to do that in single dispatch ??
inner_sum(A,v)
@time inner_sum(A,v)
Out[17]:
An ecosystem of packages¶
- Most of packages are available on Github (easy collaboration)
- Main fields are grouped in Github Organizations (see https://julialang.org/community/)
- Julia comes with a powerful package/environment manager
In [19]:
using Pkg #load the Pkg stdlib
Pkg.activate(".") #activate the local environment
Out[19]:
Solving Differential Equations¶
Solve the Lorenz equations:
$$ \begin{align} \frac{dx}{dt} &= σ(y-x) \\ \frac{dy}{dt} &= x(ρ-z) - y \\ \frac{dz}{dt} &= xy - βz \\ \end{align} $$In [49]:
#Pkg.add("DifferentialEquations") # add the Differential equation suite
using DifferentialEquations # first time is very slow (precompilation)
using Plots
gr()
Out[49]:
In [3]:
function lorenz(du,u,p,t)
du[1] = 10.0*(u[2]-u[1])
du[2] = u[1]*(28.0-u[3]) - u[2]
du[3] = u[1]*u[2] - (8/3)*u[3]
end
u0 = [1.0;0.0;0.0] ; tspan = (0.0,100.0);
prob = ODEProblem(lorenz,u0,tspan)
sol = DifferentialEquations.solve(prob)
Plots.plot(sol,vars=(1,2,3))
Out[3]:
Optimization¶
In [22]:
using JuMP, GLPK, Test
"""
Formulate and solve a simple LP:
max 5x + 3y
st 1x + 5y <= 3
0 <= x <= 2
0 <= y <= 30
"""
function example_basic()
model = Model(with_optimizer(GLPK.Optimizer))
@variable(model, 0 <= x <= 2)
@variable(model, 0 <= y <= 30)
@objective(model, Max, 5x + 3y)
@constraint(model, 1x + 5y <= 3.0)
println(model)
JuMP.optimize!(model)
obj_value = JuMP.objective_value(model)
x_value = JuMP.value(x)
y_value = JuMP.value(y)
println("Objective value: ", obj_value)
println("x = ", x_value)
println("y = ", y_value)
@test obj_value ≈ 10.6
@test x_value ≈ 2
@test y_value ≈ 0.2
end
example_basic()
Out[22]:
In [2]:
using DifferentialEquations, Measurements, Plots
g = 9.79 ± 0.02; # Gravitational constants
L = 1.00 ± 0.01; # Length of the pendulum
#Initial Conditions
u₀ = [0 ± 0, π / 60 ± 0.01] # Initial speed and initial angle
tspan = (0.0, 6.3)
#Define the problem
function simplependulum(du,u,p,t)
θ = u[1]
dθ = u[2]
du[1] = dθ
du[2] = -(g/L)*θ
end
#Pass to solvers
prob = ODEProblem(simplependulum, u₀, tspan)
sol = DifferentialEquations.solve(prob, Tsit5(), reltol = 1e-6)
# Analytic solution
u = u₀[2] .* cos.(sqrt(g / L) .* sol.t)
plot(sol.t, getindex.(sol.u, 2), label = "Numerical")
plot!(sol.t, u, label = "Analytic")
Out[2]:
Automatic differentiation¶
In [42]:
#Pkg.add("ForwardDiff")
using ForwardDiff
# Define a function f
f(x::Vector) = sum(sin, x) + prod(tan, x) * sum(sqrt, x);
x = rand(5) # small size for example's sake
# Get the gradient of f
g = x -> ForwardDiff.gradient(f, x); # g = ∇f
@show g(x)
# Get the Hessian
ForwardDiff.hessian(f, x)
Out[42]:
Deep learning¶
Classic MNIST number classification with Flux.jl
In [4]:
using Flux, Flux.Data.MNIST, Statistics
using Flux: onehotbatch, onecold, crossentropy, throttle
using Base.Iterators: repeated
# using CuArrays
# Classify MNIST digits with a simple multi-layer-perceptron
# Load images
imgs = MNIST.images()
# Stack images into one large batch
X = hcat(float.(reshape.(imgs, :))...) |> gpu
labels = MNIST.labels()
# One-hot-encode the labels
Y = onehotbatch(labels, 0:9) |> gpu
# Define the neural network (two Dense layers)
m = Chain(
Dense(28^2, 32, relu),
Dense(32, 10),
softmax) |> gpu
# define loss function and metric
loss(x, y) = crossentropy(m(x), y)
accuracy(x, y) = mean(onecold(m(x)) .== onecold(y))
# create batches of 100
dataset = repeated((X, Y), 100)
# Define callback that show the current loss
evalcb = () -> @show(loss(X, Y))
opt = ADAM()
# Train
Flux.train!(loss, params(m), dataset, opt, cb = throttle(evalcb, 10))
@show accuracy(X, Y)
# Test set accuracy
tX = hcat(float.(reshape.(MNIST.images(:test), :))...) |> gpu
tY = onehotbatch(MNIST.labels(:test), 0:9) |> gpu
@show accuracy(tX, tY)
Out[4]:
Prediction¶
Predict the number for a given image
In [6]:
n = rand(1:length(MNIST.images(:test)))
print("Prediction:",argmax(tY[:,n])-1)
heatmap(MNIST.images(:test)[n])
Out[6]:
Deep learning + Autodiff¶
=> Scientific Machine learning
http://www.stochasticlifestyle.com/the-essential-tools-of-scientific-machine-learning-scientific-ml/
https://fluxml.ai/2019/03/05/dp-vs-rl.html
https://fluxml.ai/2019/02/07/what-is-differentiable-programming.html
Interop¶
Interop possible avec Python, Matlab, R, Java, C/Fortran,...
In [38]:
#Pkg.add("PyCall") # add python binding package
using PyCall
@pyimport math # import python math library
@show math.sin(math.pi / 4)
@show sin(pi / 4) ; #Julia native sinus function
In [29]:
# call C
t = ccall((:clock, "libc.so.6"), Int32, ())
Out[29]:
Macros: code that transforms code¶
In [30]:
# @time macro inserts timing and memory profiling into expression, then evaluates, and prints
@time f(2//3)
Out[30]:
In [31]:
# @which macro determines which function is called, provides link to source code on GitHub
@which exp(π)
Out[31]:
In [32]:
@which exp(π*im)
Out[32]:
Macros enable run-time code generation and transformation.
Applications :
- generation and execution of boilerplate code
- run-time generation and optimization of algorithms, e.g. FFTW, ATLAS
- symbolic mathematics, automatic differentiation
- all written like high-level Python, running like compiled C !!!
Parallelism in Julia: just change the array type¶
Some very trivial examples of Julia's built-in parallelism
In [33]:
using Distributed
#Pkg.add("DistributedArrays")
# add 4 process
addprocs(4);
In [34]:
; cat codes/count_heads.jl
In [44]:
# define function on all process
@everywhere include("codes/count_heads.jl")
# dispatch two tasks
a = @spawn count_heads(10000000)
b = @spawn count_heads(10000000)
(fetch(a)+fetch(b))/20000000 # Get proba of drawing a head
Out[44]:
Parallel loops with reduction¶
In [48]:
# distribute the simulation on all process and sum results
nheads = @distributed (+) for i=1:200000000
Int(rand(Bool))
end
nheads/200000000
Out[48]:
And more :
- Distributed arrays
- GPUArrays
- TPUArrays ...
- Nested Threading (PARTR)
Just changing the behavior of the underlying structure can bring new hardware support for all packages
Helpful materials¶
- Main site https://julialang.org/
- Docs https://docs.julialang.org/en/v1/
- Courses : https://juliaacademy.com/
- Forum https://discourse.julialang.org/
- Book https://benlauwens.github.io/ThinkJulia.jl/latest/book.html
- Blog http://www.stochasticlifestyle.com/
- All-in-one package : https://juliacomputing.com/products/juliapro.html
- Try online : https://juliabox.com/
Code as a first-class citizen product of research¶
- The (new version) Julia package manager has reproductibility at its core (each code project is linked to a deterministic set of dependencies)
- Creating a Julia package comes with tools for documentation, unit testing, continuous integration
- New scientific collaborations can be based on software (see the Github organizations such as JuliaDiff, JuliaStats, etc...)
Food for thoughts¶
- Cost and open source
- Matlab licences cost several 10K€ each year to some labs
- Julia (and Python and R) come for free but development is not free
- A part of Matlab costs could go to financing open source software that is critical for science (see e.g. https://bitbucket.org/paugier/etude-asso-pynumfr/src/default/etude_asso_python_sciences_fr.rst?fileviewer=file-view-default)
- The combo C(++) low-level libraries and high level bindings (as Tensorflow, Keras...) lead to black box workflows...
Conclusions¶
Julia
- Easy as Matlab, fast as Fortran, flexible as Python, deep as Lisp
- Scientific computing, from interactive exploration to HPC
- Paradigms (multiple dispatch) that enforce collaboration
Not covered
- large-scale programming, development ecosystem, environments, debuggers, etc.
- Abstract Types, compositions, ...
- rough edges: plotting, static compilation (not quite there), package loading times, young 1.x
Thanks : the Julia community for most of the examples, xkcd
Julia website: http://www.julialang.org, this talk: https://github.com/raphbacher/julia-intro
